HOWTO: Dec 22, 2022 - Hetzner
Publish frontend/backend TypeScript/ES6-Module sites online on Hetzner/Arch/Caddy/pm2 box
  • what we will do
  • ==> STEP 1. Set up frontend and backend locally <==
  • ==> STEP 2. Publish backend to Hetzner Arch Linux box under subdomain <==
    • 2.1. Setup subdomain
    • 2.2. Prepare local backend site for deployment
      • since the backend already exists in a repository, there is nothing to do in this step
      • however, if you have changed anything in the backend locally since you cloned it above
        • push the changes to the repository now
    • 2.3. Move files to Heztner server and test
      • log into your Hetzner machine via ssh
      • go to projects directory
        • on my Arch machine, this is /var/www since there was an issue with exposing home directories to the web
      • pull directory from GitHub
        • e.g. git clone git@github.com:edwardtanguay/getajob007-backend.git
      • go into directory
        • cd getajob007-backend
      • create .env file on the server
        • PIN = 1234
          PORT = 3501
      • note your npm scripts in package.json:
        • "scripts": {
              "dev": "npm run build && nodemon",
              "start": "node dist/server.js",
              "deploy": "git pull --no-rebase && npm i && npm run build && pm2 restart getajob007-backend",
              "build": "tsc"
          },
      • test to see if your site works on the server
        • npm i - this will create node_modules
        • npm run build - this will create dist
        • npm start - this will run dist/server.js
        • then go to url with port

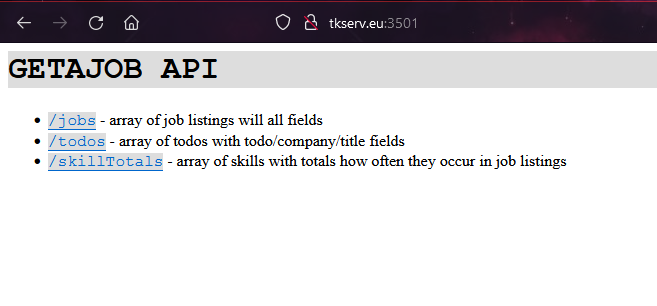

      • your site should work at your domain:port via http
    • 2.4. Register HTTPS subdomain in Caddy web server
      • stop your site (CTRL-C)
      • open the file that Caddy uses to save all its website config files
        • sudo vim /etc/caddy/Caddyfile
        • create an entry for this backend
          • getajob007-backend.tkserv.eu {
                reverse_proxy localhost:3501
            }
      • restart Caddy
        • sudo systemctl restart caddy
      • start your site again with npm start

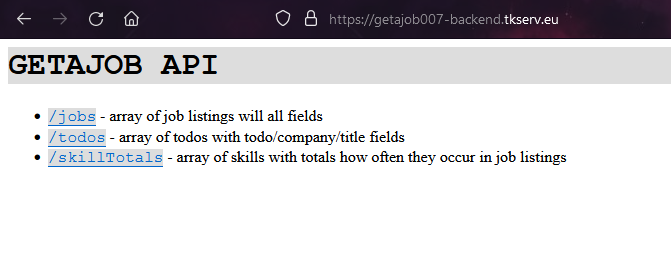

      • note that with Caddy, both subdomain and the https certificate are automatically registered with this one entry
    • 2.5. Set up pm2 to run and manage your site in the background
      • so that we don't need to keep manually starting our React app, let's register the app with pm2 and allow pm2 to start and run it as a service so that it runs in the background 24/7
      • stop your site (CTRL-C)
      • register your site with pm2
        • pm2 start --name getajob007-backend npm -- start
        • if it asks you to run pm2 save to synchronize, then do that as well
      • test that your site is running in the background
    • 2.6. Make a change to the backend in your dev environment and deploy it to production

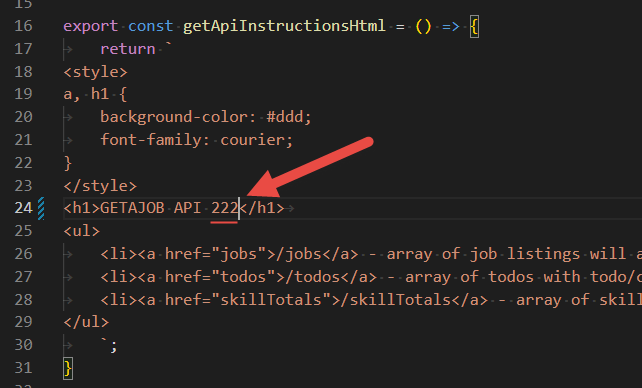

      • make a change in the getApiInstructionsHtml function in the model.ts file:
      • commit and push change to GitHub
      • on the server, go to the directory of the site

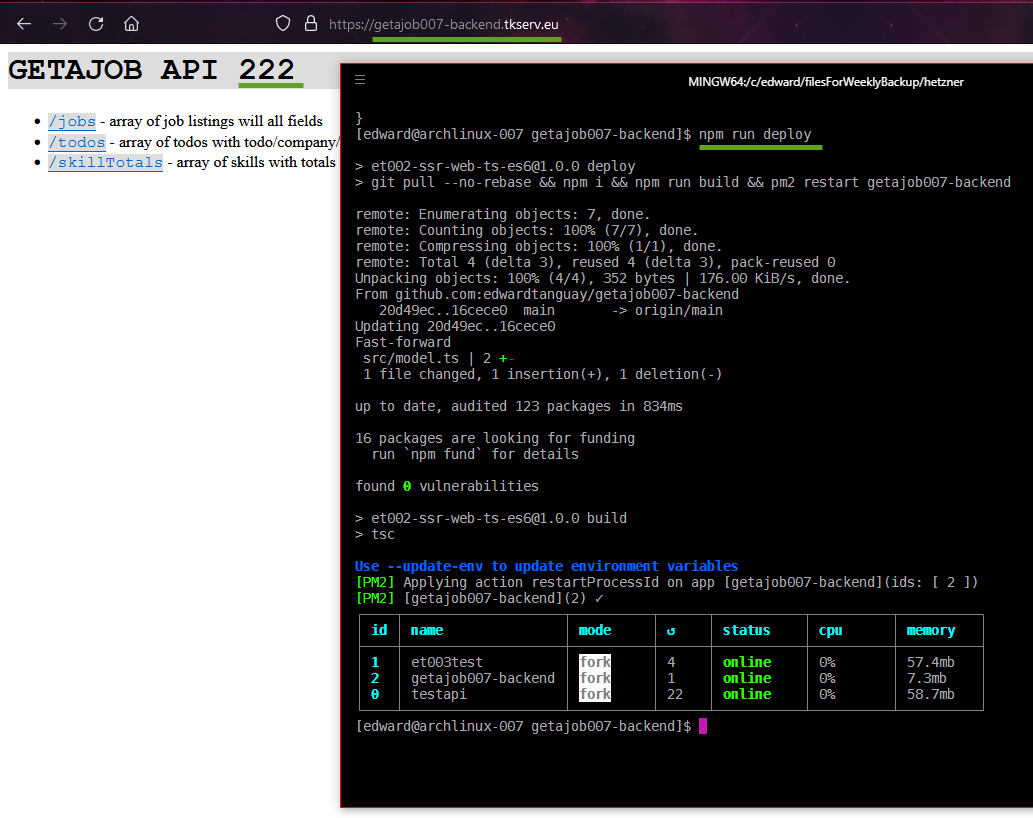

        • npm run deploy
      • reload the site and you will see the change:
      • change it back the same way
  • ==> STEP 3. Publish frontend to Hetzner Arch Linux box under subdomain <==
    • 3.1. Setup subdomain
      • log into your Hetzner machine:

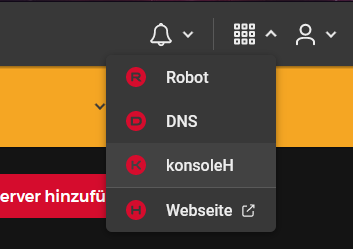

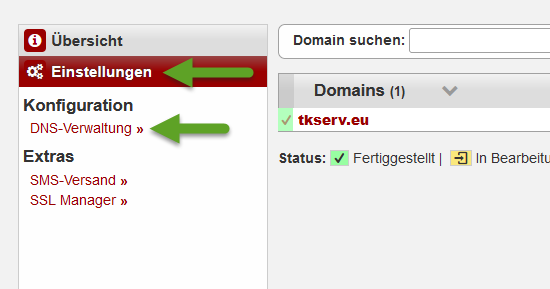

      • choose konsoleH:
        • Einstellungen
        • DNS-Verwaltung
        • [DNS Panel öffnen]

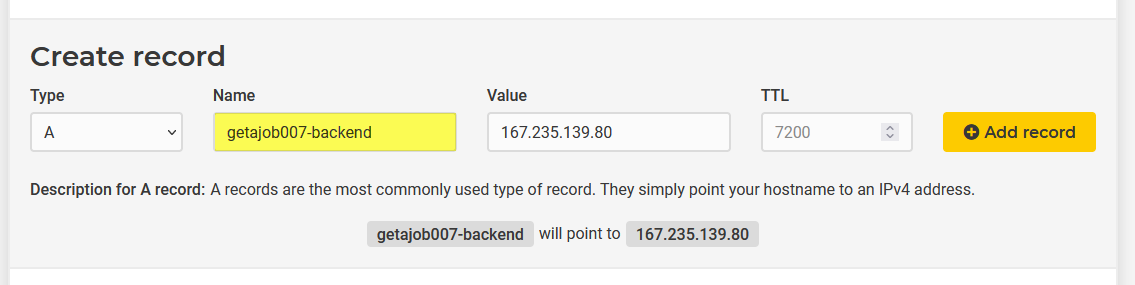

      • create record with your chosen subdomain name, e.g. getajob007 (without the -frontend)
      • [Add record]
    • 3.2. Prepare local backend site for deployment
      • since the backend already exists in a repository, there is nothing to do in this step
      • however, if you have changed anything in the backend locally since you cloned it above
        • push the changes to the repository now
    • 3.3. Move files to Heztner server and test
      • log into your Hetzner machine via ssh
      • go to projects directory
        • on my Arch machine, this is /var/www since there was an issue with exposing home directories to the web
      • pull directory from GitHub
        • e.g. git clone git@github.com:edwardtanguay/getajob007-front.git
      • go into directory
        • cd getajob007-frontend
      • create .env file, e.g.
        • VITE_BACKEND_URL = https://getajob007-backend.tkserv.eu
      • test to see if your site works on the server
        • npm i
        • npm run build
        • npm start

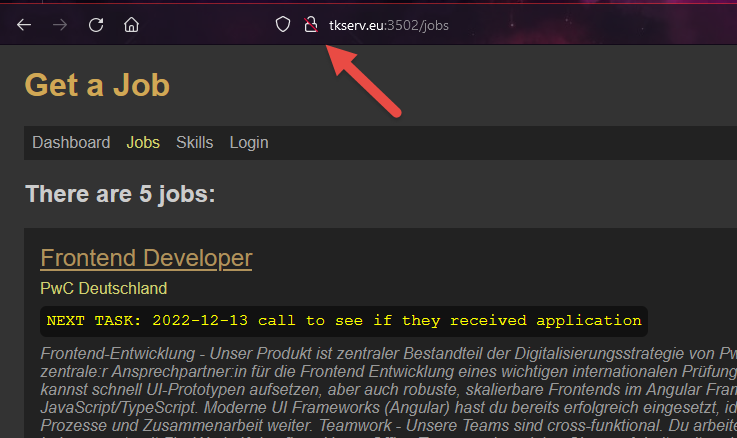

      • your site should work at your domain:port via http:
    • 3.4. Register HTTPS subdomain in Caddy web server
      • stop your site (CTRL-C)
      • open the file that Caddy uses to save all its website config files
        • sudo vim /etc/caddy/Caddyfile
        • create an entry for this frontend
          • getajob007.tkserv.eu {
                root * /var/www/getajob007-frontend/dist
                try_files {path} /index.html
                file_server
            }
      • restart Caddy
        • sudo systemctl restart caddy
      • note that we are not serving this site via a PORT
        • we are merely mapping the subdomain to the /dist directory
        • therefore the site will now run without an npm start or setting pm2 up to serve it
      • note also that with Caddy, both subdomain and the https certificate are automatically registered with this one entry

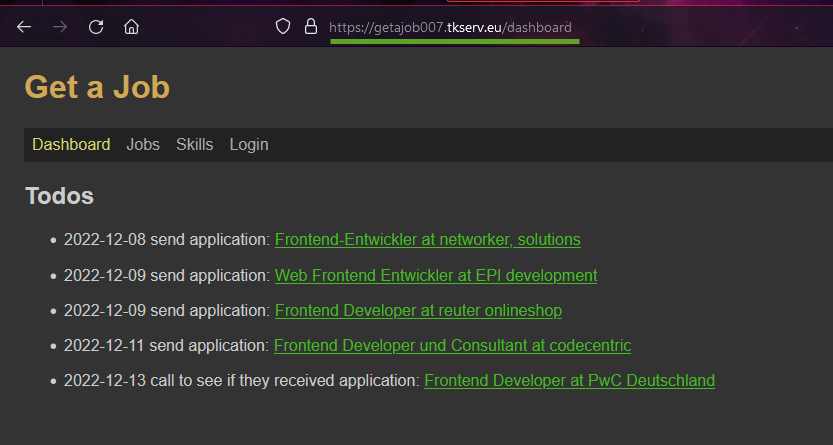

      • your site will now run at your secure subdomain address:
    • 3.5. Make a change to the frontend in your dev environment and deploy it to production

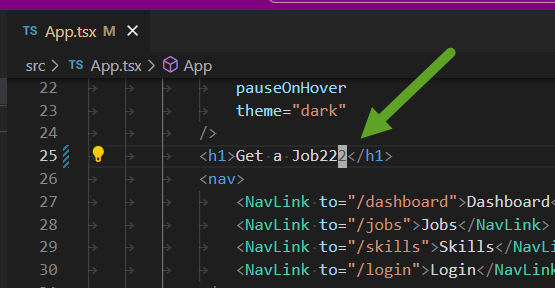

      • in your local dev environment, make a change to App.tsx
      • commit and push change to GitHub
      • on the server, go to the directory of the site
        • git pull && git run build

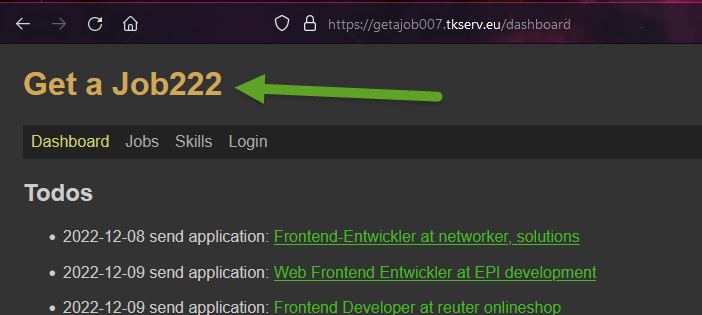

      • reload the site and you will see the change:
      • change it back the same way
